Feign是一种声明式、模板化的HTTP客户端。feign中文意思是模仿、假装的，顾名思义，它其实内部封装了http客户端，使得我们调用http请求时就像调用接口那么简单。来看一个简单的feign例子。^[1]

/**
pom.xml。本文基于当前最新版feign进行解析
<!--feign gson decoder，解析response-->
<dependency>
	<groupId>io.github.openfeign</groupId>
	<artifactId>feign-gson</artifactId>
	<version>11.2</version>
</dependency>

<!--feign，feign核心包-->
<dependency>
	<groupId>io.github.openfeign</groupId>
	<artifactId>feign-core</artifactId>
	<version>11.2</version>
</dependency>
**/

import feign.Feign;
import feign.Param;
import feign.RequestLine;
import feign.gson.GsonDecoder;
import feign.gson.GsonEncoder;

import java.io.Serializable;
import java.util.List;

public class FeignDemo {

    public static final String API_URL = "https://api.github.com";

    //定义返回结果bean
    public static class Contributor implements Serializable {
        public final String login;
        public final int id;
        public final String url;

        public Contributor(String login, int contributions, String url) {
            this.login = login;
            this.id = contributions;
            this.url = url;
        }

    }

    public interface GitHub {
        @RequestLine("GET /repos/{owner}/{repo}/contributors")
        List<Contributor> contributors(@Param("owner") String owner, @Param("repo") String repository);

    }


    public static void main(String[] args) {

        GitHub gitHub = Feign.builder()
                .encoder(new GsonEncoder())
                .decoder(new GsonDecoder())
                .target(GitHub.class, "https://api.github.com");

        //访问https://api.github.com/repos/OpenFeign/feign/contributors
        //看起来就像调用远程接口，实际上是发了http请求。使得代码简洁方便。
        List<Contributor> contributors = gitHub.contributors("OpenFeign", "feign");
        for (Contributor contributor : contributors) {
            System.out.println("login name=" + contributor.login + ", id = " + contributor.id + ", page url = " + contributor.url);
        }
    }
}

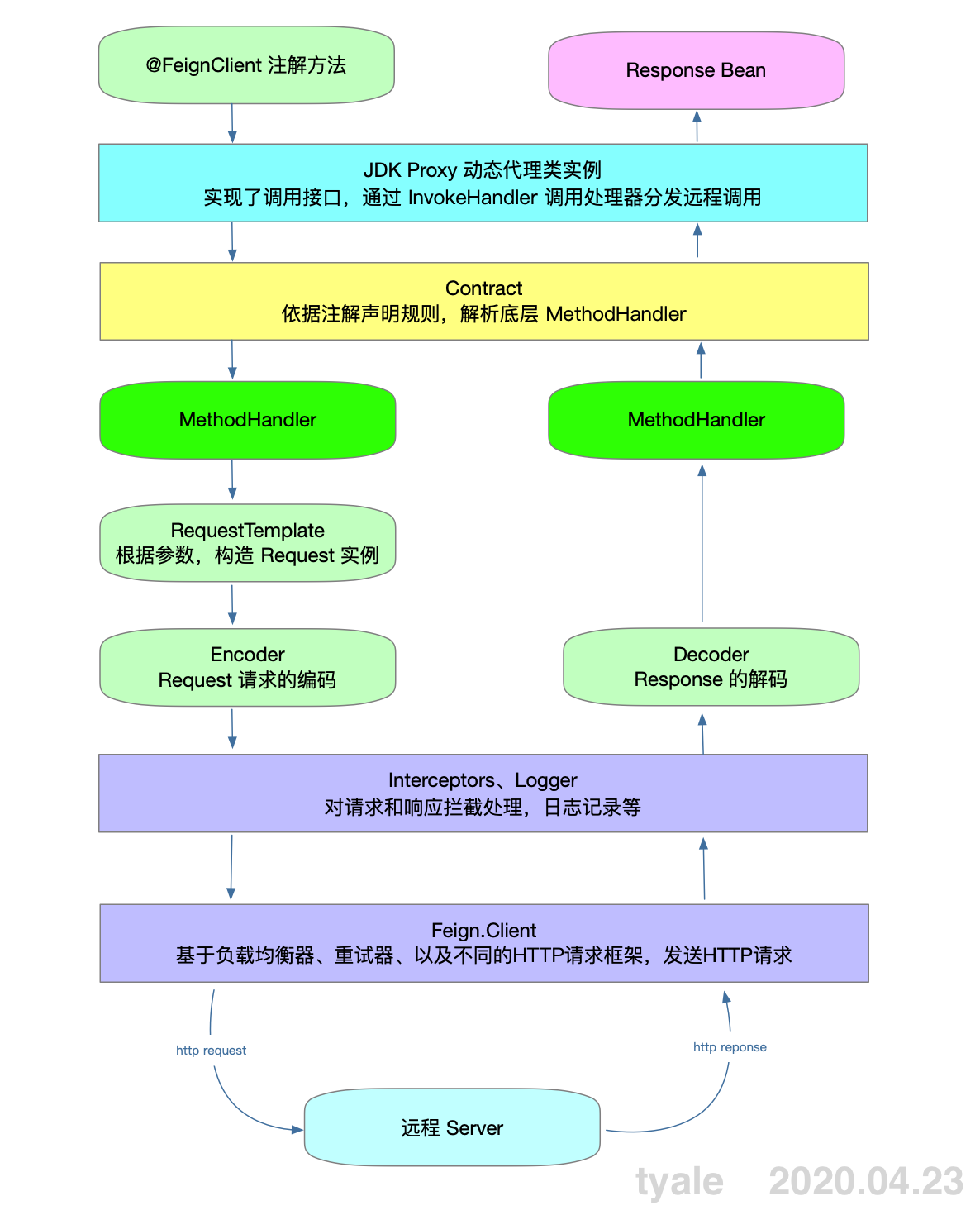

以下是大神画的openfeign的原理图，openfeign核心也是feign，接下来我们根据这张图去看看源码如何实现的。本文源码基于feign 11.2解析。

feign原理

1. 创建接口的代理类

图中的@FeignClient是openfeign中的注解，后面会讲到。根据上面那个例子，从Feign.Builder()入手分析。Feign.Builder中定义了feign的一些属性。

//请求拦截器
private final List<RequestInterceptor> requestInterceptors =
        new ArrayList<RequestInterceptor>();
//日志级别
private Logger.Level logLevel = Logger.Level.NONE;
//contract：合同。实际上是请求遵守的协议
private Contract contract = new Contract.Default();
//发送请求的客户端。默认为JDK自带的HttpURLConnection
private Client client = new Client.Default(null, null);
//重试相关参数
private Retryer retryer = new Retryer.Default();
//日志记录器
private Logger logger = new NoOpLogger();
//参数编码器
private Encoder encoder = new Encoder.Default();
//响应解码器
private Decoder decoder = new Decoder.Default();
//请求转换成map的类
private QueryMapEncoder queryMapEncoder = new FieldQueryMapEncoder();
//报错处理器
private ErrorDecoder errorDecoder = new ErrorDecoder.Default();
//Request的内部类，包含http连接时长、超时设置等信息
private Options options = new Options();
//控制代理类的方法调用。
private InvocationHandlerFactory invocationHandlerFactory =
    new InvocationHandlerFactory.Default();
private boolean decode404;
private boolean closeAfterDecode = true;
private ExceptionPropagationPolicy propagationPolicy = NONE;
private boolean forceDecoding = false;
private List<Capability> capabilities = new ArrayList<>();

接下来分析.target(GitHub.class, "https://api.github.com");target方法。我们可以看到，在target中，build()为feign的相关属性设置了默认值，newInstance最终掉到了feign.ReflectiveFeign#newInstance方法。该方法创建了目标方法的代理类，并为代理类绑定了调用方法MethodHandler。

//Feign#target
public <T> T target(Target<T> target) {
  return build().newInstance(target);
}

//Feign#build
public Feign build() {
  //省略
  InvocationHandlerFactory invocationHandlerFactory =
      Capability.enrich(this.invocationHandlerFactory, capabilities);
  QueryMapEncoder queryMapEncoder = Capability.enrich(this.queryMapEncoder, capabilities);

  SynchronousMethodHandler.Factory synchronousMethodHandlerFactory =
      new SynchronousMethodHandler.Factory(client, retryer, requestInterceptors, logger,
          logLevel, decode404, closeAfterDecode, propagationPolicy, forceDecoding);
  //通过名称解析，规定了request的解析协议，参数，编码/接码器、同步方法处理工厂等，源码不贴了，自己看，很简单
  ParseHandlersByName handlersByName =
      new ParseHandlersByName(contract, options, encoder, decoder, queryMapEncoder,
          errorDecoder, synchronousMethodHandlerFactory);
    //实例化了ReflectiveFeign对象
  return new ReflectiveFeign(handlersByName, invocationHandlerFactory, queryMapEncoder);
}

//ReflectiveFeign#newInstance。
  public <T> T newInstance(Target<T> target) {
  	//依据Contract，解析底层MethodHandler
    Map<String, MethodHandler> nameToHandler = targetToHandlersByName.apply(target);
    Map<Method, MethodHandler> methodToHandler = new LinkedHashMap<Method, MethodHandler>();
    List<DefaultMethodHandler> defaultMethodHandlers = new LinkedList<DefaultMethodHandler>();

	//设置调用方法的handler
    for (Method method : target.type().getMethods()) {
      if (method.getDeclaringClass() == Object.class) {
        continue;
      } else if (Util.isDefault(method)) {
        DefaultMethodHandler handler = new DefaultMethodHandler(method);
        defaultMethodHandlers.add(handler);
        methodToHandler.put(method, handler);
      } else {
        methodToHandler.put(method, nameToHandler.get(Feign.configKey(target.type(), method)));
      }
    }
    InvocationHandler handler = factory.create(target, methodToHandler);
    //通过JDK Proxy创建代理类
    T proxy = (T) Proxy.newProxyInstance(target.type().getClassLoader(),
        new Class<?>[] {target.type()}, handler);

    for (DefaultMethodHandler defaultMethodHandler : defaultMethodHandlers) {
      defaultMethodHandler.bindTo(proxy);
    }
    //返回代理类
    return proxy;
  }

2. 依据Contract，解析底层MethodHandler

Map<String, MethodHandler> nameToHandler = targetToHandlersByName.apply(target);用来解析底层的MethodHandler，我们来看看apply方法。

//feign.ReflectiveFeign.ParseHandlersByName#apply

public Map<String, MethodHandler> apply(Target target) {
//1. 解析注解
  List<MethodMetadata> metadata = contract.parseAndValidateMetadata(target.type());
  Map<String, MethodHandler> result = new LinkedHashMap<String, MethodHandler>();
  //2. 遍历元数据，解析底层MethodHandler
  // 2.1 构造MethodHandler所需的参数BuildTemplateByResolvingArgs
  for (MethodMetadata md : metadata) {
    BuildTemplateByResolvingArgs buildTemplate;
    if (!md.formParams().isEmpty() && md.template().bodyTemplate() == null) {
      buildTemplate =
          new BuildFormEncodedTemplateFromArgs(md, encoder, queryMapEncoder, target);
    } else if (md.bodyIndex() != null) {
      buildTemplate = new BuildEncodedTemplateFromArgs(md, encoder, queryMapEncoder, target);
    } else {
      buildTemplate = new BuildTemplateByResolvingArgs(md, queryMapEncoder, target);
    }
	//2.2 通过工厂构造MethodHandler
    if (md.isIgnored()) {
      result.put(md.configKey(), args -> {
        throw new IllegalStateException(md.configKey() + " is not a method handled by feign");
      });
    } else {
      result.put(md.configKey(),
          factory.create(target, md, buildTemplate, options, decoder, errorDecoder));
    }
  }
  return result;
}
}

2.1 解析注解

主要对目标接口的注解、方法注解、参数注解进行解析。

//feign.Contract.BaseContract#parseAndValidateMetadata(java.lang.Class<?>)
//targetType为目标类。比如例子中为：com.hk7.feign.FeignDemo$GitHub
public List<MethodMetadata> parseAndValidateMetadata(Class<?> targetType) {
  //目标类必须返回明确的参数。不能是泛型。因此无法存在TypeParameters参数
  //假设contributors方法返回类型是List<Contributor>，则会报错，因为无法匹配被调用方具体哪一个方法
  checkState(targetType.getTypeParameters().length == 0, "Parameterized types unsupported: %s",
      targetType.getSimpleName());
  //最多一个接口。原因同上。
  checkState(targetType.getInterfaces().length <= 1, "Only single inheritance supported: %s",
      targetType.getSimpleName());
  if (targetType.getInterfaces().length == 1) {
    checkState(targetType.getInterfaces()[0].getInterfaces().length == 0,
        "Only single-level inheritance supported: %s",
        targetType.getSimpleName());
  }
  final Map<String, MethodMetadata> result = new LinkedHashMap<String, MethodMetadata>();
  //遍历接口的所有方法
  for (final Method method : targetType.getMethods()) {
    if (method.getDeclaringClass() == Object.class ||
        (method.getModifiers() & Modifier.STATIC) != 0 ||
        Util.isDefault(method)) {
      continue;
    }
    //解析元数据。解析方法，并设置其处理类MethodHandler
    final MethodMetadata metadata = parseAndValidateMetadata(targetType, method);
    checkState(!result.containsKey(metadata.configKey()), "Overrides unsupported: %s",
        metadata.configKey());
    result.put(metadata.configKey(), metadata);
  }
  return new ArrayList<>(result.values());
}


//feign.Contract.BaseContract#parseAndValidateMetadata(java.lang.Class<?>, java.lang.reflect.Method)
//这里是处理接口方法handler的关键代码
protected MethodMetadata parseAndValidateMetadata(Class<?> targetType, Method method) {
  //定义需要解析的元数据data，并通过targetType和method赋值给它。后面基于data做解析
  final MethodMetadata data = new MethodMetadata();
  data.targetType(targetType);
  data.method(method);
  data.returnType(Types.resolve(targetType, targetType, method.getGenericReturnType()));
  //configKey拼接方法,结果是 GitHub#contributors(String,String)
  data.configKey(Feign.configKey(targetType, method));

	//解析目标类上的注解，本例没有
  if (targetType.getInterfaces().length == 1) {
    processAnnotationOnClass(data, targetType.getInterfaces()[0]);
  }
  processAnnotationOnClass(data, targetType);

	//遍历解析方法上的注解，本例为解析：@RequestLine("GET /repos/{owner}/{repo}/contributors")
  for (final Annotation methodAnnotation : method.getAnnotations()) {
    processAnnotationOnMethod(data, methodAnnotation, method);
  }
  //默认false
  if (data.isIgnored()) {
    return data;
  }
  //实例化data的时候，template已经创建了，默认为RequestTemplate
  //如果RequestTemplate的method为空，则报错
  //RequestTemplate的method属性赋值，在解析方法注解的时候完成.后面会讲到
  checkState(data.template().method() != null,
      "Method %s not annotated with HTTP method type (ex. GET, POST)%s",
      data.configKey(), data.warnings());
  //获取方法的参数和原生参数，这里为均为String String
  final Class<?>[] parameterTypes = method.getParameterTypes();
  final Type[] genericParameterTypes = method.getGenericParameterTypes();

	//获取参数中的注解，{repo} {repo}等同于@Param
  final Annotation[][] parameterAnnotations = method.getParameterAnnotations();
  final int count = parameterAnnotations.length;
  //遍历处理参数中的注解, @Param
  for (int i = 0; i < count; i++) {
    boolean isHttpAnnotation = false;
    if (parameterAnnotations[i] != null) {
    //具体处理
      isHttpAnnotation = processAnnotationsOnParameter(data, parameterAnnotations[i], i);
    }

    if (isHttpAnnotation) {
      data.ignoreParamater(i);
    }
	//注解解析结果校验
    if (parameterTypes[i] == URI.class) {
      data.urlIndex(i);
    } else if (!isHttpAnnotation && parameterTypes[i] != Request.Options.class) {
      if (data.isAlreadyProcessed(i)) {
        checkState(data.formParams().isEmpty() || data.bodyIndex() == null,
            "Body parameters cannot be used with form parameters.%s", data.warnings());
      } else {
        checkState(data.formParams().isEmpty(),
            "Body parameters cannot be used with form parameters.%s", data.warnings());
        checkState(data.bodyIndex() == null,
            "Method has too many Body parameters: %s%s", method, data.warnings());
        data.bodyIndex(i);
        data.bodyType(Types.resolve(targetType, targetType, genericParameterTypes[i]));
      }
    }
  }
	//校验header参数
  if (data.headerMapIndex() != null) {
    checkMapString("HeaderMap", parameterTypes[data.headerMapIndex()],
        genericParameterTypes[data.headerMapIndex()]);
  }
	//校验query参数
  if (data.queryMapIndex() != null) {
    if (Map.class.isAssignableFrom(parameterTypes[data.queryMapIndex()])) {
      checkMapKeys("QueryMap", genericParameterTypes[data.queryMapIndex()]);
    }
  }

  return data;
}

接下来看看，feign是如何对类注解、方法注解和参数注解进行解析的。从以上源码我们可以看到，在feign.DeclarativeContract类中的processAnnotationOnClass、processAnnotationOnMethod、processAnnotationsOnParameter三个方法中对以上三类注解进行了解析。这三个方法大同小异，都是获取定义好的注解解析器，然后调用process方法进行实际解析。

//这里我摘抄了processAnnotationOnMethod的部分源码，另两个类似，只不过多了一些判断条件
//获取所有的方法注解解析器
List<GuardedAnnotationProcessor> processors = methodAnnotationProcessors.stream()
    .filter(processor -> processor.test(annotation))
    .collect(Collectors.toList());
//遍历方法注解解析器 解析
if (!processors.isEmpty()) {
  processors.forEach(processor -> processor.process(annotation, data));
}

源码我们可以看到方法解析器存储在methodAnnotationProcessorsmap中，那么它是什么时候被放进去的呢？这里往前看，在创建feign实例的时候会执行private Contract contract = new Contract.Default();，在Contract.Default()的构造方法中，把那三种注解解析器注册进了Contract的对应map中。

//DeclarativeContract类中存储解析三种注解处理器的三个容器
public abstract class DeclarativeContract extends BaseContract {
  private final List<GuardedAnnotationProcessor> classAnnotationProcessors = new ArrayList<>();
  private final List<GuardedAnnotationProcessor> methodAnnotationProcessors = new ArrayList<>();
  private final Map<Class<Annotation>, DeclarativeContract.ParameterAnnotationProcessor<Annotation>> parameterAnnotationProcessors =
      new HashMap<>();
}

Contract.Default继承自DeclarativeContract，从构造方法中可以看到，它的注册方式都是形如super.registerXXXAnnotation(AnnotationClass.class, param -> {})的方式，其中匿名函数param -> {}就是具体解析逻辑。我们跟踪super.registerClassAnnotation方法最终会看到register方法，方法注解和参数注解类似

protected <E extends Annotation> void registerClassAnnotation(Predicate<E> predicate,
                                                                DeclarativeContract.AnnotationProcessor<E> processor) {
    //GuardedAnnotationProcessor(predicate, processor)就是注解解析器
    //其中processor为我们传入的解析器解析方法
    this.classAnnotationProcessors.add(new GuardedAnnotationProcessor(predicate, processor));
  }

接下来我们看看具体的注解解析逻辑，代码位于feign.Contract.Default#Default{}中

注册类注解处理器到classAnnotationProcessors中

//注册 处理注解@Header的类注解器
super.registerClassAnnotation(Headers.class, (header, data) -> {
  //获取headers
  final String[] headersOnType = header.value();
  checkState(headersOnType.length > 0, "Headers annotation was empty on type %s.",
      data.configKey());
  //放入requestTemplate的headers中
  final Map<String, Collection<String>> headers = toMap(headersOnType);
  headers.putAll(data.template().headers());
  data.template().headers(null); // to clear
  data.template().headers(headers);
});

总结：把@Header中数组取出，转成map赋值给requestTemplate

注册方法注解处理器到methodAnnotationProcessors中

//1.注册 处理注解@RequestLine的方法注解器
super.registerMethodAnnotation(RequestLine.class, (ann, data) -> {
  final String requestLine = ann.value();
  checkState(emptyToNull(requestLine) != null,
      "RequestLine annotation was empty on method %s.", data.configKey());
 //这里对requestLine的值进行正则校验,   ^([A-Z]+)[ ]*(.*)$
  //匹配  ‘大写字符 小写字符串’。post /a/b/x 失败， Get /a/b/c 成功
  final Matcher requestLineMatcher = REQUEST_LINE_PATTERN.matcher(requestLine);
  if (!requestLineMatcher.find()) {
    throw new IllegalStateException(String.format(
        "RequestLine annotation didn't start with an HTTP verb on method %s",
        data.configKey()));
  } else {
    //这里设置requestTemplate的method和url
    data.template().method(HttpMethod.valueOf(requestLineMatcher.group(1)));
    data.template().uri(requestLineMatcher.group(2));
  }
  data.template().decodeSlash(ann.decodeSlash());
  data.template()
      .collectionFormat(ann.collectionFormat());
});


//2.注册 处理注解@Body的方法注解器
super.registerMethodAnnotation(Body.class, (ann, data) -> {
  final String body = ann.value();
  checkState(emptyToNull(body) != null, "Body annotation was empty on method %s.",
      data.configKey());
  //这里设置requestTemplate的body
  if (body.indexOf('{') == -1) {
    data.template().body(body);
  } else {
    data.template().bodyTemplate(body);
  }
});


//3.注册 处理注解@Headers的方法注解器
super.registerMethodAnnotation(Headers.class, (header, data) -> {
  final String[] headersOnMethod = header.value();
  checkState(headersOnMethod.length > 0, "Headers annotation was empty on method %s.",
      data.configKey());
  //这里设置requestTemplate的headers
  data.template().headers(toMap(headersOnMethod));
});

总结：

@RequestLine：解析值，并将method和uri赋值给请求（requestTemplate）
@Body：设置请求体的值和编码

@Headers：设置请求的header

注册参数注解处理器到parameterAnnotationProcessors中

//注册 处理注解@Param的参数注解器
super.registerParameterAnnotation(Param.class, (paramAnnotation, data, paramIndex) -> {
  final String annotationName = paramAnnotation.value();
  final Parameter parameter = data.method().getParameters()[paramIndex];
  final String name;
  if (emptyToNull(annotationName) == null && parameter.isNamePresent()) {
    name = parameter.getName();
  } else {
    name = annotationName;
  }
  checkState(emptyToNull(name) != null, "Param annotation was empty on param %s.",
      paramIndex);
  nameParam(data, name, paramIndex);
  final Class<? extends Param.Expander> expander = paramAnnotation.expander();
  if (expander != Param.ToStringExpander.class) {
    data.indexToExpanderClass().put(paramIndex, expander);
  }
  //设置data的formParams值
  if (!data.template().hasRequestVariable(name)) {
    data.formParams().add(name);
  }
});


//注册 处理注解@QueryMap的参数注解器
super.registerParameterAnnotation(QueryMap.class, (queryMap, data, paramIndex) -> {
  checkState(data.queryMapIndex() == null,
      "QueryMap annotation was present on multiple parameters.");
  //设置data的queryMapIndex和queryMapEncoded
  data.queryMapIndex(paramIndex);
  data.queryMapEncoded(queryMap.encoded());
});


//注册 处理注解@HeaderMap的参数注解器
super.registerParameterAnnotation(HeaderMap.class, (queryMap, data, paramIndex) -> {
  checkState(data.headerMapIndex() == null,
      "HeaderMap annotation was present on multiple parameters.");
  //设置data的queryMapIndex值
  data.headerMapIndex(paramIndex);
});

总结：不总结了，类似method，都是给request设置响应属性值。

从源码我们可以看到默认的请求协议包含的6种注解，分别是@Header、@RequestLine、@Body、@Headers、@Param、@QueryMap、@HeaderMap，他们对应着三类解析器。实际工作中，我们也可以定义自己的Contract协议，只需要实现Contract接口即可，比如openfeign就是使用这种方式，集成了spring mvc的相关注解进去。

2.2 为代理类设置MethodHandler

这个很简单，主要是通过工厂创建MethodHandler。factory.create(target, md, buildTemplate, options, decoder, errorDecoder));，这里的factory是new Feign.Build的时候创建的，它是一个同步方法处理工厂SynchronousMethodHandler。接下来我们看看它的create代码。

    public MethodHandler create(Target<?> target,
                                MethodMetadata md,
                                RequestTemplate.Factory buildTemplateFromArgs,
                                Options options,
                                Decoder decoder,
                                ErrorDecoder errorDecoder) {
			//其实就是返回了一个SynchronousMethodHandler
      return new SynchronousMethodHandler(target, client, retryer, requestInterceptors, logger,
          logLevel, md, buildTemplateFromArgs, options, decoder,
          errorDecoder, decode404, closeAfterDecode, propagationPolicy, forceDecoding);
    }

//SynchronousMethodHandler类成员变量如下
//具体不解释了，同上。看名字就能猜出来
final class SynchronousMethodHandler implements MethodHandler {
  private final MethodMetadata metadata;
  private final Target<?> target;
  private final Client client;
  private final Retryer retryer;
  private final List<RequestInterceptor> requestInterceptors;
  private final Logger logger;
  private final Logger.Level logLevel;
  private final RequestTemplate.Factory buildTemplateFromArgs;
  private final Options options;
  private final ExceptionPropagationPolicy propagationPolicy;

  // only one of decoder and asyncResponseHandler will be non-null
  private final Decoder decoder;
  private final AsyncResponseHandler asyncResponseHandler;

SynchronousMethodHandler继承自MethodHandler，因此方法的调用是在这个类的invoke中进行的。里面包含了图中request构造、编码、请求拦截、response解码等都在里面。

3. 方法的调用和返回

@Override
public Object invoke(Object[] argv) throws Throwable {
  //1. 构造request
  RequestTemplate template = buildTemplateFromArgs.create(argv);
  //2. 设置request相关选项。比如连接时长、读取时长等
  Options options = findOptions(argv);
  //3. 获取重试器
  Retryer retryer = this.retryer.clone();
  while (true) {
    try {
      // 4. 发起http请求并解析response
      return executeAndDecode(template, options);
    } catch (RetryableException e) {
      try {
        //5. 报错重试
        retryer.continueOrPropagate(e);
      } catch (RetryableException th) {
        Throwable cause = th.getCause();
        if (propagationPolicy == UNWRAP && cause != null) {
          throw cause;
        } else {
          throw th;
        }
      }
      if (logLevel != Logger.Level.NONE) {
      	//4. 记录重试日志
        logger.logRetry(metadata.configKey(), logLevel);
      }
      continue;
    }
  }
}

3.1 构造request请求

buildTemplateFromArgs.create(argv);这一句构造request请求，前面分析元数据中也有requestTemplate，它只是临时的，，通过它构造真正的请求。argv是调用方法时传入的参数。

@Override
public RequestTemplate create(Object[] argv) {
	//1. 通过metadata.template构造临时的RequestTemplate。
	//form()就是一些赋值操作，自己去看
  RequestTemplate mutable = RequestTemplate.from(metadata.template());
  //2. 设置目标url
  mutable.feignTarget(target);
  if (metadata.urlIndex() != null) {
    int urlIndex = metadata.urlIndex();
    checkArgument(argv[urlIndex] != null, "URI parameter %s was null", urlIndex);
    mutable.target(String.valueOf(argv[urlIndex]));
  }
  //3. 解析argv参数。
  //varBuilder   {1->OpenFeign, 2->feign}
  Map<String, Object> varBuilder = new LinkedHashMap<String, Object>();
  for (Entry<Integer, Collection<String>> entry : metadata.indexToName().entrySet()) {
    int i = entry.getKey();
    Object value = argv[entry.getKey()];
    if (value != null) { // Null values are skipped.
      if (indexToExpander.containsKey(i)) {
        value = expandElements(indexToExpander.get(i), value);
      }
      for (String name : entry.getValue()) {
        varBuilder.put(name, value);
      }
    }
  }
	//4. varBuilder参数填充至url中的占位符，并返回真正的RequestTemplate
	//实际上是通过Template#resolveExpression解析表达式实现的。不贴源码了，自己去看吧
  RequestTemplate template = resolve(argv, mutable, varBuilder);

  // 5. queryMap不为空则填充请求的query
  if (metadata.queryMapIndex() != null) {
    // add query map parameters after initial resolve so that they take
    // precedence over any predefined values
    Object value = argv[metadata.queryMapIndex()];
    Map<String, Object> queryMap = toQueryMap(value);
    template = addQueryMapQueryParameters(queryMap, template);
  }
  // 6. headerMap不为空则填充请求的header
  if (metadata.headerMapIndex() != null) {
    template =
        addHeaderMapHeaders((Map<String, Object>) argv[metadata.headerMapIndex()], template);
  }
	// 7. 返回构造好的requestTemplate
  return template;
}

3.2 发起请求并解析响应

设置参数和获取重试器都很简单，分析省略。直接看executeAndDecode方法。

Object executeAndDecode(RequestTemplate template, Options options) throws Throwable {
	//1. 从requestTemplate中获取请求。并执行拦截器的方法
	//代码省略，默认的拦截器只是给请求加了Authorization头
  Request request = targetRequest(template);
//2. 记日志
  if (logLevel != Logger.Level.NONE) {
    logger.logRequest(metadata.configKey(), logLevel, request);
  }

  Response response;
  long start = System.nanoTime();
  try {
  	//3. 客户端发送http请求
  	//client的初始化再Feign里面，前面有说过。具体的构造就是发送请求并获取response，代码不贴了。使用jdk自带的DelegateHttpsURLConnection连接
  	/**
  @Override
  public Response execute(Request request, Options options) throws IOException {
    HttpURLConnection connection = convertAndSend(request, options);
    return convertResponse(connection, request);
  }
  	**/
    response = client.execute(request, options);
    // ensure the request is set. TODO: remove in Feign 12
    response = response.toBuilder()
        .request(request)
        .requestTemplate(template)
        .build();
  } catch (IOException e) {
    if (logLevel != Logger.Level.NONE) {
      logger.logIOException(metadata.configKey(), logLevel, e, elapsedTime(start));
    }
    throw errorExecuting(request, e);
  }
  long elapsedTime = TimeUnit.NANOSECONDS.toMillis(System.nanoTime() - start);

//4. 解码器对response进行解码。默认为空。
  if (decoder != null)
    return decoder.decode(response, metadata.returnType());
//5. 解析response并解码
//从名字可以看出来，响应处理器是异步的。它会把结果返回到CompletableFuture中
  CompletableFuture<Object> resultFuture = new CompletableFuture<>();
  asyncResponseHandler.handleResponse(resultFuture, metadata.configKey(), response,
      metadata.returnType(),
      elapsedTime);

  try {
    if (!resultFuture.isDone())
      throw new IllegalStateException("Response handling not done");

    return resultFuture.join();
  } catch (CompletionException e) {
    Throwable cause = e.getCause();
    if (cause != null)
      throw cause;
    throw e;
  }
}

我们来看第五步，解析response并解码源码。

void handleResponse(CompletableFuture<Object> resultFuture,
                  String configKey,
                  Response response,
                  Type returnType,
                  long elapsedTime) {
// copied fairly liberally from SynchronousMethodHandler
boolean shouldClose = true;

try {
  if (logLevel != Level.NONE) {
    response = logger.logAndRebufferResponse(configKey, logLevel, response,
        elapsedTime);
  }
  //如果是返回的是Response，直接解析
  if (Response.class == returnType) {
  	//body为空直接返回空
    if (response.body() == null) {
      resultFuture.complete(response);
    } else if (response.body().length() == null
        || response.body().length() > MAX_RESPONSE_BUFFER_SIZE) {
      shouldClose = false;
      resultFuture.complete(response);
    } else {
      // 否则从Response里面读取body，并设置返回
      final byte[] bodyData = Util.toByteArray(response.body().asInputStream());
      resultFuture.complete(response.toBuilder().body(bodyData).build());
    }
    //如果返回code是2xx
  } else if (response.status() >= 200 && response.status() < 300) {
    if (isVoidType(returnType)) {
      resultFuture.complete(null);
    } else {
    // 解码器解析response。具体解析逻辑根据各自传入解码器决定
    /**比如gson，主要两步
    1. reader读取结果流
    Reader reader = response.body().asReader(Util.UTF_8);
    2. 转换成json串
    this.gson.fromJson(reader, type);
    **/
      final Object result = decode(response, returnType);
      shouldClose = closeAfterDecode;
      // 把结果赋值到resultFuture中
      resultFuture.complete(result);
    }
    //如果404，则直接解析并返回
  } else if (decode404 && response.status() == 404 && !isVoidType(returnType)) {
    final Object result = decode(response, returnType);
    shouldClose = closeAfterDecode;
    resultFuture.complete(result);
  } else {
    //如果发生异常（5xx），则异常解析器进行异常解析
    resultFuture.completeExceptionally(errorDecoder.decode(configKey, response));
  }
} catch (final IOException e) {
  if (logLevel != Level.NONE) {
    logger.logIOException(configKey, logLevel, e, elapsedTime);
  }
  resultFuture.completeExceptionally(errorReading(response.request(), response, e));
} catch (final Exception e) {
  resultFuture.completeExceptionally(e);
} finally {
  if (shouldClose) {
    ensureClosed(response.body());
  }
}

}
